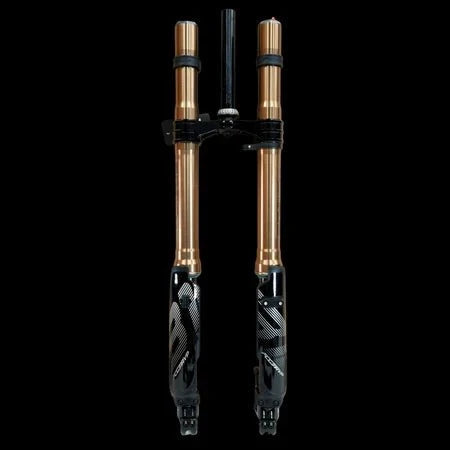

RFLOXA Hawk36R Max Plus Front Fork for Arctic Leopard XE Pro R
Description:
Exclusively created for Pinned Electric, the RFLOXA Hawk36R Max+ Black Front Fork is designed around the Arctic Leopard XE Pro R specifications. This inverted oil-spring fork features 228mm of suspension travel, bronze fork tubes, black flat triple clamps, and a threaded DLC steering column.
Adjustable high-speed compression, low-speed compression, rebound, and spring preload allow you to tune the suspension for your weight, riding style, and terrain. Two spring options accommodate different rider weights, with compatibility for 19-inch and 21-inch front wheels.
Specifications:
-
Brand: RFLOXA
-
Model: Hawk36R Max+
-
Exclusive Edition: Created exclusively for Pinned Electric
-
Configuration: Black flat clamps, bronze tubes, and threaded DLC steering column
-
Center Distance: 800mm
-
Travel: 228mm
-
Tube Diameter: 37mm
-
Caliper Mount Spacing: 78.5mm
-
Brake Disc Size: 240mm; upgradeable with a compatible brake setup
-
Wheel Compatibility: 19-inch and 21-inch front wheels
-
Damping System: Inverted oil-spring
-
Adjustments: Multi-stage high-speed compression, low-speed compression, rebound, and spring preload
-
Lower Bracket Material: AL6061-T6 forged aluminum alloy
-
Fork Tube Material: AL7075-T6 aluminum
-
Spring Wire Material: 55CRSI
-
MAX Triple Clamps: CNC precision machined
Spring Options:
-
45 lb Spring: For riders up to 85kg (approximately 187 lbs)
-
55 lb Spring: For riders weighing 85–120kg (approximately 187–265 lbs)
Fitment:
Designed based on the Arctic Leopard XE Pro R specifications. Confirm wheel size, brake mounting dimensions, and headset compatibility before ordering.
What’s Included:
- (1) RFLOXA Hawk36R Max+ front fork assembly with selected spring option
- Black flat MAX triple clamps
- Threaded DLC steering column
- Lower headset bearing, supplied loose
Installation:
Professional installation is recommended. The included lower headset bearing is supplied loose and is not pre-pressed onto the steering column. It must be properly installed during assembly. A compatible upper headset bearing is also required.
Verify brake alignment, headset adjustment, and all mounting hardware before riding. Adjust spring preload and damping settings to suit the rider’s weight and riding conditions.
Important Notes:
- Created exclusively for Pinned Electric.
- Upper headset bearing is not included.
- Lower headset bearing is included but is not pre-installed.
- Select the appropriate spring option for your rider weight.
- Brake disc upgrades require compatible mounting hardware and sufficient clearance.
