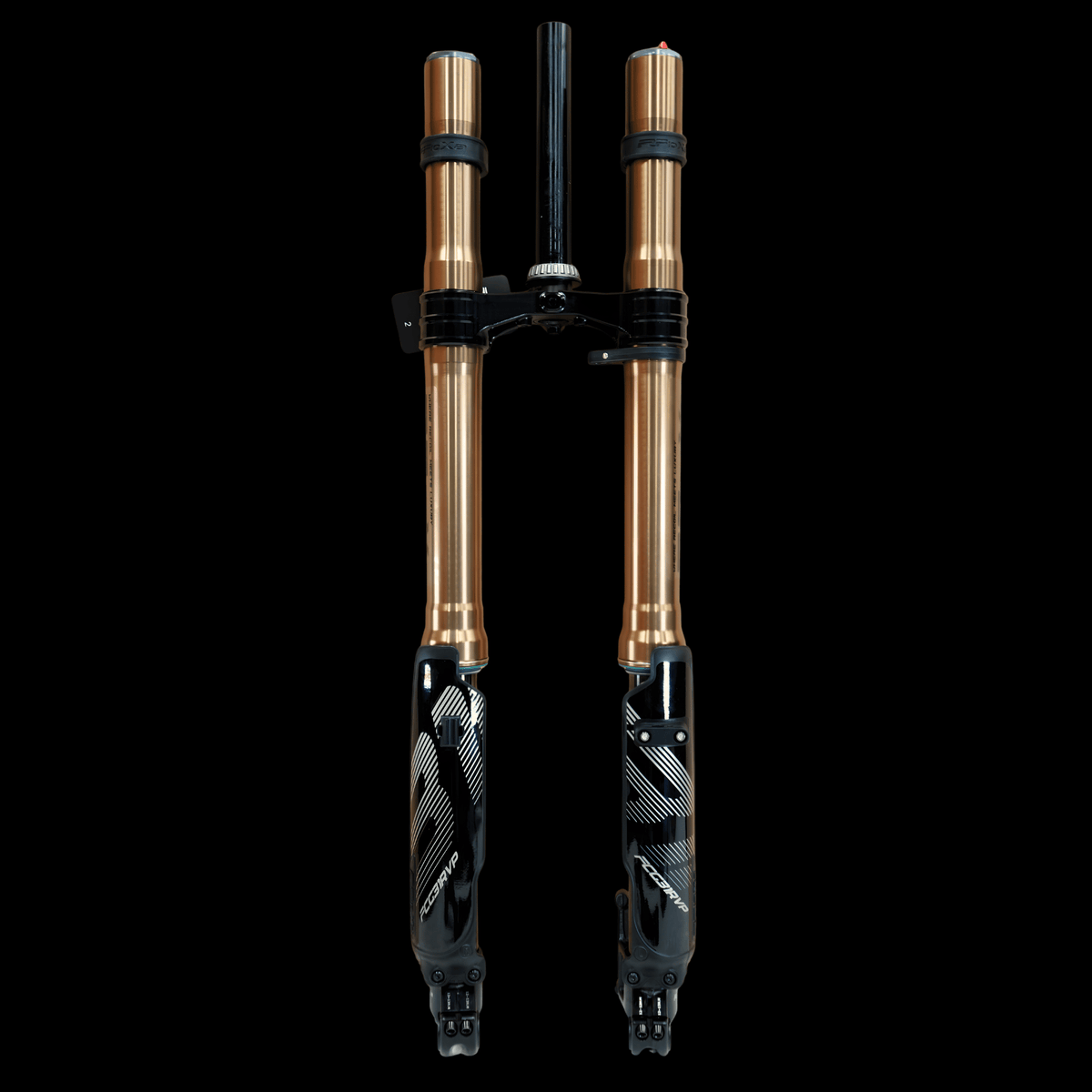

RFloXa Hawk31 Max Plus Fork
Description:
Exclusively created for Pinned Electric, the RFloXa Hawk 31 Max Plus Fork is designed for compatible light eMoto platforms. Featuring 225mm of travel and a 775mm overall length, this inverted oil-spring fork offers adjustable suspension performance for demanding off-road riding.
Bronze-coated upper tubes and black DLC-coated stanchions help reduce friction and improve wear resistance, while SKF seals support smooth operation and reliable sealing. Adjustable high-speed compression, low-speed compression, rebound, and spring preload allow you to tune the suspension to your riding style and terrain.
Both flat and drop crown triple clamps are included, providing setup options for 19-inch and 21-inch front wheels and preferred riding geometry.
Specifications:
-
Brand: RFloXa
-
Model: Hawk 31 Max Plus
-
Exclusive Edition: Created exclusively for Pinned Electric
-
Overall Length: 775mm
-
Travel: 225mm
-
Tube Diameter: 37mm
-
Damping System: Inverted oil-spring
-
Adjustments: High-speed compression, low-speed compression, rebound, and spring preload
-
Upper Tubes: Bronze coated
-
Stanchions: Black DLC coated
-
Seals: SKF
-
Triple Clamps: CNC machined
-
Crown Options: Flat and drop crowns included
-
Front Wheel Compatibility: 21-inch and 19-inch
Fitment:
- Talaria MX3 / MX4 / XXX
- SurRon LBX / LBS / L1E
- Segway X-260 / X-160
- E Ride Pro S / SS 1.0 / SS 2.0
- Rawrr Mantis
- 79 Bike Falcon M
- Ventus One
- RFN Apollo
- Rerode R1
Confirm wheel size, brake mounting compatibility, and headset requirements before ordering, especially on bikes with modified front-end components.
What’s Included:
- (1) RFloXa Hawk 31 Max Plus fork assembly
- Flat crown triple clamps
- Drop crown triple clamps
Installation:
Professional installation is recommended. Select the appropriate crown configuration for your bike’s wheel size and required geometry.
Verify headset adjustment, brake alignment, cable routing, and all mounting hardware before riding. Adjust spring preload and damping settings to suit the rider and riding conditions.
Important Notes:
- Created exclusively for Pinned Electric.
- Both flat and drop crowns are included.
- Designed for the compatible light eMoto models listed above.
- Wheel compatibility depends on the crown configuration and adequate clearance.
- Confirm compatibility with your bike’s existing wheel, axle, brake system, and headset before installation.
