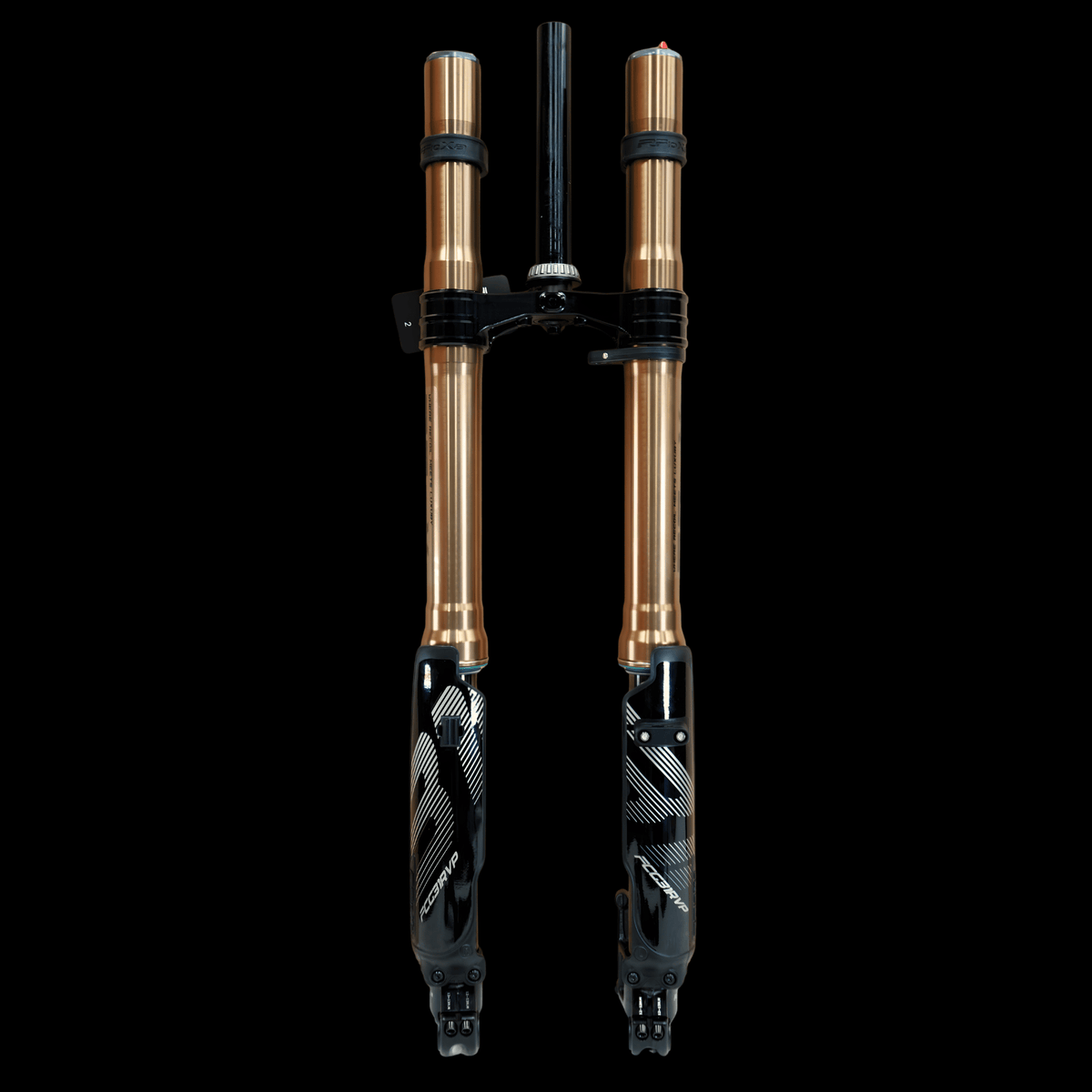

RFloXa Hawk36 Max Plus Fork
Description:
Exclusively created for Pinned Electric, the RFloXa Hawk36 Max Plus Fork, also known as the Hawk 36 S Max Plus, is designed for the Arctic Leopard XE Pro S, XE Pro S Enduro, and XF. Featuring 225mm of travel and a 775mm overall length, this inverted oil-spring fork offers adjustable suspension performance for demanding off-road riding.
Bronze-coated upper tubes and black DLC-coated stanchions help reduce friction and improve wear resistance, while SKF seals support smooth operation and reliable sealing. Adjustable high-speed compression, low-speed compression, rebound, and spring preload allow you to tune the fork to your riding style and terrain.
Both flat and drop crown triple clamps are included, providing setup options for different wheel sizes and preferred riding geometry.
Specifications:
-
Brand: RFloXa
-
Product Name: Hawk36 Max Plus Fork
-
Model: Hawk 36 S Max Plus
-
Exclusive Edition: Created exclusively for Pinned Electric
-
Overall Length: 775mm
-
Travel: 225mm
-
Tube Diameter: 37mm
-
Damping System: Inverted oil-spring
-
Adjustments: High-speed compression, low-speed compression, rebound, and spring preload
-
Upper Tubes: Bronze coated
-
Stanchions: Black DLC coated
-
Seals: SKF
-
Triple Clamps: CNC machined
-
Crown Options: Flat and drop crowns included
-
Front Wheel Compatibility: 21-inch, 19-inch, and 17-inch
Fitment:
- Arctic Leopard XE Pro S
- Arctic Leopard XE Pro S Enduro
- Arctic Leopard XF
Confirm wheel size, brake mounting compatibility, and headset requirements before ordering.
What’s Included:
- (1) RFloXa Hawk36 Max Plus fork assembly
- Flat crown triple clamp set
- Drop crown triple clamp set
Installation:
Professional installation is recommended. Select the appropriate crown configuration for your bike’s wheel size and required geometry.
Verify headset adjustment, brake alignment, cable routing, and all mounting hardware before riding. Adjust spring preload and damping settings to suit the rider and riding conditions.
Important Notes:
- Created exclusively for Pinned Electric.
-
This fork is also known as the RFloXa Hawk 36 S Max Plus.
- Both flat and drop crowns are included.
- Wheel compatibility depends on the crown configuration and adequate clearance.
-
We do not recommend installing an 800mm fork on the Arctic Leopard XF. This fork has a 775mm overall length.
