Provide your bike and rider information below for suspension setup. Installation parts are sold separately unless the package description explicitly includes them.

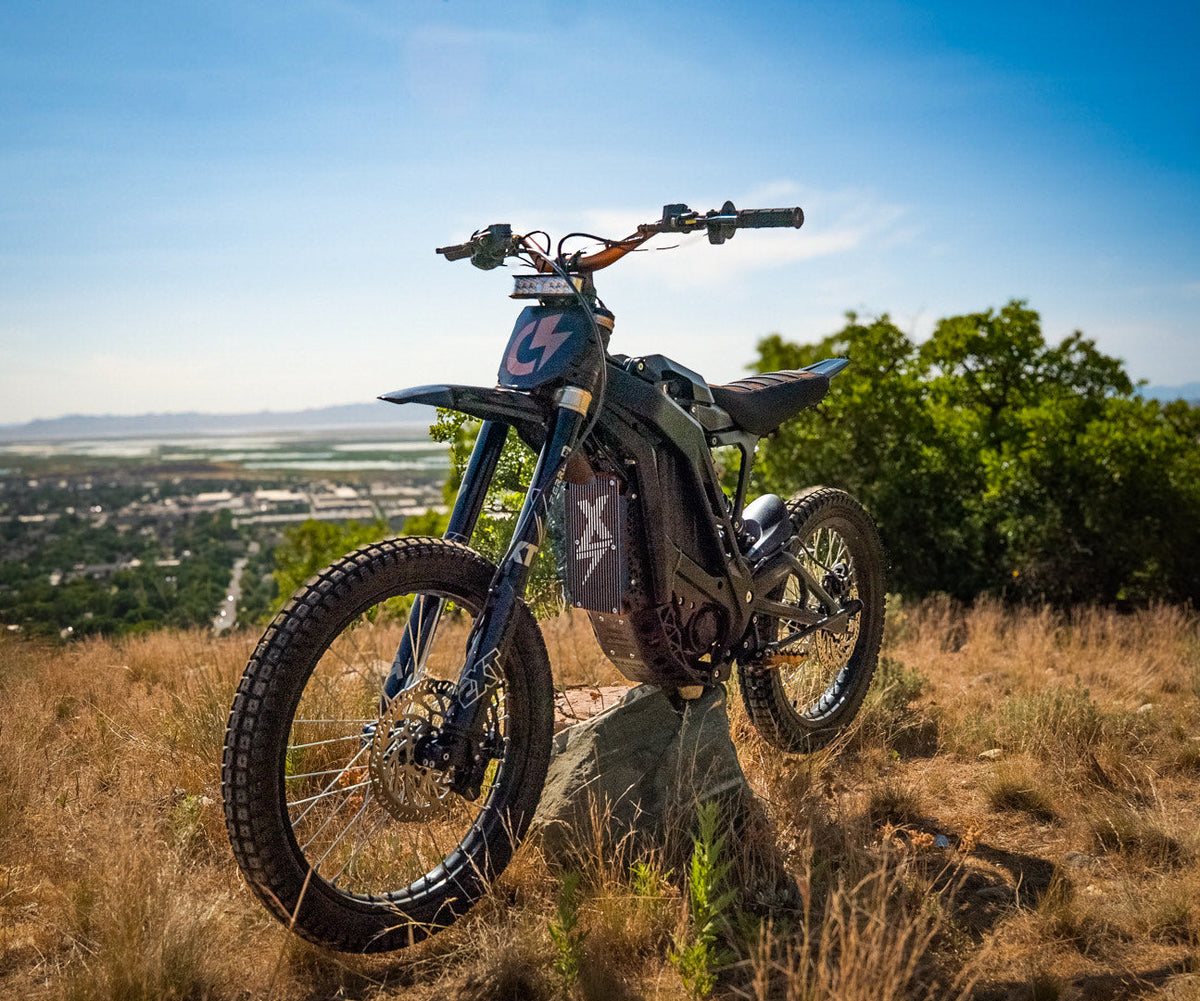

FERRO and ARMA MX Set for E-Ride Pro 3.0 with brake adaptor included.
Arma MX CORE FEATURES
- 4 way adjustable: LSC-HSC-LSR-HBC (Hydraulic Bottom-Out Control)
- High flow 29 mm main piston
- 24 mm valve piston
- 14 mm shaft (50% larger than most other coils on market to help deal with large side loading events)
- Engineered rebound circuit to separate bump and rebound oil flow – Ultra low-friction coating
- User adjustable HBC technology
- Very low reservoir pressure for maximum sensitivity and low cavitation(55 PSI)
- Full custom hydraulic setup that is bike and rider specific for each shock
- Very low hysteresis for high dynamic response
- High turbulent flow for progressive dampening and mid stroke support
- Low friction seal
- Thinner bottom-out bumper and debris clearing washer
- New low profile rebound knob for easy spring swap
- Included with 1 light weight spring available in 400lb, 450lb, 500lb, 550lb or 600lbs (Lower options may be available upon request)
- Comes with specific mounting hardware for easy bolt in instillation.
Ferro CORE FEATURES
- Robust dual crown inverted MX design (USD)
- 36mm Ø hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment
- HS3 3- twin positive air system ¬+ 1 large negative self-balancing air chamber, allows for an optimum level of support through all the travel
- High flow 3-way cartridge damper system with independent high & low speed compression plus rebound damping adjustment.
- Superfinish inner tube coating
- External pressure air release system on both legs
- Twin hexagonal floating axle, boost compatible ∅20mm
- Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on side loads)
- Large piston design for best damping control and separate IFP/coil energized compression valve
- No cavitation and low hysteresis
- Self-hydraulic cartridge bleeding
- Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)
- 205 mm of travel and 44 mm offset
- 200 mm post mount brake
- Weight 4000gr
- Pressure release one-way valves on both legs
- Compatible with stock fender design
- Boost Hub Spacing for more flexibility with after market wheel sets.
INCLUDES:
- Arma MX Rear Damper and Selected Spring
- Ferro EMX With Drop Crown
- E-Ride Pro 3.0 Brake Adaptor
Arma MX Recommended Spring Rates for E-Ride Pro 3.0
| Rider Weight |
Plush |
Firm |
| up to 140 |
400 |
450 |
| 140 to 160 |
450 |
500 |
| 160-180 |
500 |
550 |
| 180-210 |
550 |
600 |
| 210+ |
600 |
650 |
Ferro Recommended Starting settings for E-ride Pro 3.0
| |
Plush
|
|
Firm |
|
| Rider Weight
|
Main Chamber (+) |
Ramp Chamber (++) |
Main Chamber (+) |
Ramp Chamber (++) |
| 120 |
70 |
88 |
80 |
110 |
| 140 |
80 |
100 |
90 |
125 |
| 160 |
90 |
113 |
105 |
150 |
| 180 |
100 |
125 |
120 |
170 |
| 200 |
110 |
138 |
130 |
180 |
| 220 |
120 |
150 |
145 |
200 |
