Provide your bike and rider information below for suspension setup. Installation parts are sold separately unless the package description explicitly includes them.

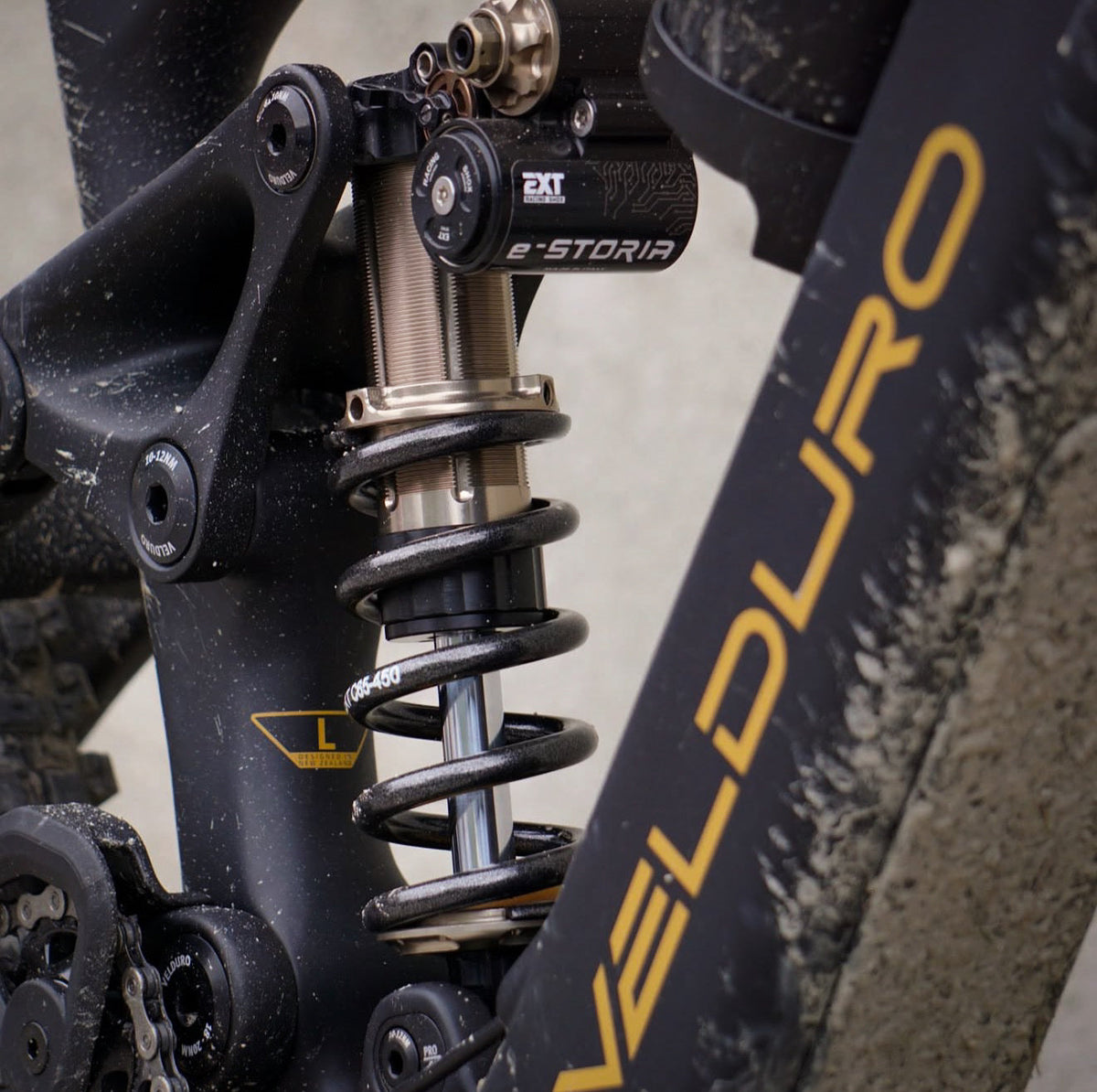

The E-Storia features much of the same technology of the Storia V4 but in a more robust package built specifically for the stresses involved with the higher weight of e-bikes and tailored to provide ultimate reliability. While the new Storia and Arma V4 are built for best-in-class weight and performance, the e-Storia is designed with an emphasis on toughness to improve reliability when used on e-bikes or for heavier riders who require additional support. The stronger shock design can help increase the lifespan of bike chassis components as well, and increase range of tune-ability accommodating a wider range of bikes and riders. An industry “first” and an ultra-high performance suspension; it’s specifically designed for aggressive e-bike riding, and riders who require higher spring weights.
e-Storia includes the following features:
- Integrated reservoir head design to increase eyelet/trunnion mount fitment
- Stronger body construction
- Chromoly shaft with low friction coating
- Reservoir with large volume bladder design
- Dedicated spring platform to accommodate stiffer springs
- Internal negative spring to avoid harsh top-out and improve bike platform stability
- Lok 2.0
- New rebound adjustment to increase tuning range
- New compression valve design to increase adjustability range and provide more supple low speed characteristics.
- Low hysteresis to improve dynamic response
- Completely independent compression/rebound adjustment
- New check valve with low inertia to control damping even at really high frequency
- New externally adjustable HBC and more efficient design to increase bottom out protection
- New seal design to reduce friction
- New main piston design with high flow to improve sensitivity and tunability
- All valves with turbulent flow to assure consistent damping with different temperature and under extreme use/conditions
- A new high viscosity index oil for longer consistent riding in all different situations and seasons
- Springs available up to 800lb
- Weight 460g (Metric 210x55 without spring)
-
Price is for damper only.
AFMLOW RIDERS: Due to the tight frame clearance on Amflow PL frames, we are recommending a maximum rider weight of 230lbs. To ensure frame clearance, riders over a 170lb will most likely require and be shipped with a C55 spring-size. C55 spring rates max out at 700lbs rate, which calculates to a 250lb rider weight. If you are over the recommended maximum rider weight, your spring may touch your frame under full compression.
